Road studs

Stimsonite® Inset Studs (381.C80)

A recessed, non-depressible, permanently-bonded road stud, designed with a curved indent to use with our 980/C80 Surface Mounted Studs.

  • Durable and long-lasting cast iron housing
  • Ramp angles that protect against heavy trafficking
  • Snow ploughable for continual guidance in all weather conditions
  • UKCA and CE marked to BS EN 1463 – Part 1 & 2
Speak to our team
shape

Provides retroreflectivity from over 300 linear metres

delivered by two-way snow-ploughable road studs

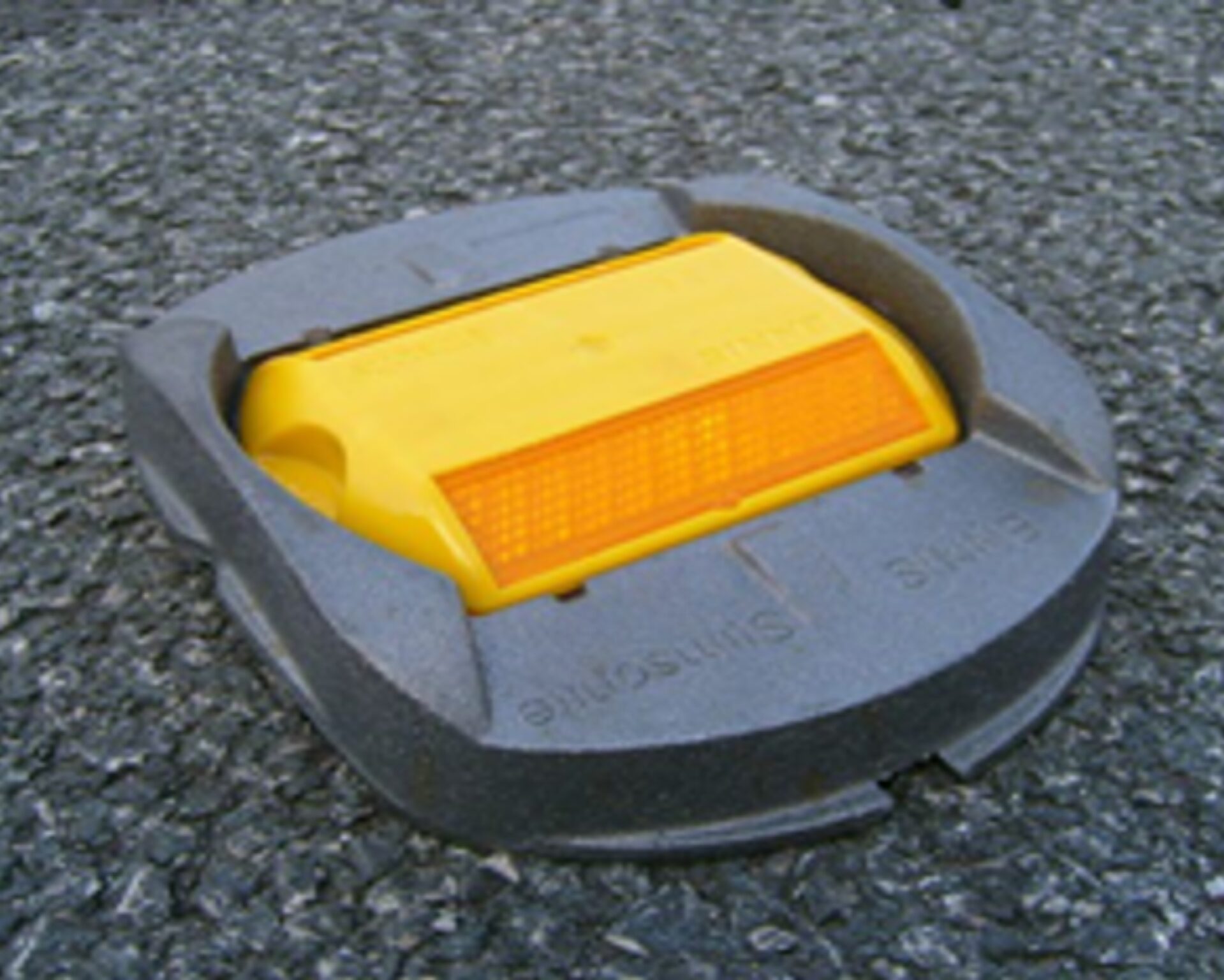

About Stimsonite® Inset Studs

Our Stimsonite® 381C Inset Studs are designed to retain their retroreflectivity values under intense weather and trafficking, providing continual guidance to motorists in all conditions. It is designed to be used with our surface mounted studs, which are glued into the metal housing to form the inset system.

Stimsonite® 381C Inset Studs are a non-depressible, reflective road stud system, designed with hardened cast iron housings to withstand all climatic conditions.
Key benefits
  • Exceptional durability

    Provided in a durable metal housing made with hardened cast iron, proven in trial to hold 100% retention.

  • Certified performance

    Meets Highways Agency and TSRGD regulations, as well as being compliant to BS EN 1463 – Part 1 and 2.

  • Weather-resistant

    Hardwearing and snow-ploughable cast iron housing designed to withstand all weather conditions.

  • Outstanding visibility

    Formulated to retain excellent retroreflectivity values above 150 mcd across all climatic conditions.

shape

Key features

Looking for more technical information? Ask one of our sales representatives about Stimsonite® Inset Studs.

Application

Installed by milling, using a rotary cutting tool and a suitable adhesive/grouting compound.

Uses

Suitable for use on highways, airfield roads, service roads, and other highly-trafficked roads.

Specifications

Compliant to the regulations of Highways England, UKCA approved, and CE marked to BS EN 1463 – Part 1 & 2.

Speak to our team
shape

381.C80 Inset Stud colour range

Our 381.C80 Inset Studs have a varied colour range, each used for a different purpose depending on where it is applied.

Duo White

Used for lane delineation on one-way systems or areas where bidirectional reflection is safe.
Duo Red

Used to warn drivers of the left-hand edge of the roads or of temporary works from both directions.
Duo Green

Used to indicate a permitted entry or exit point where both directions of travel are safely separated.

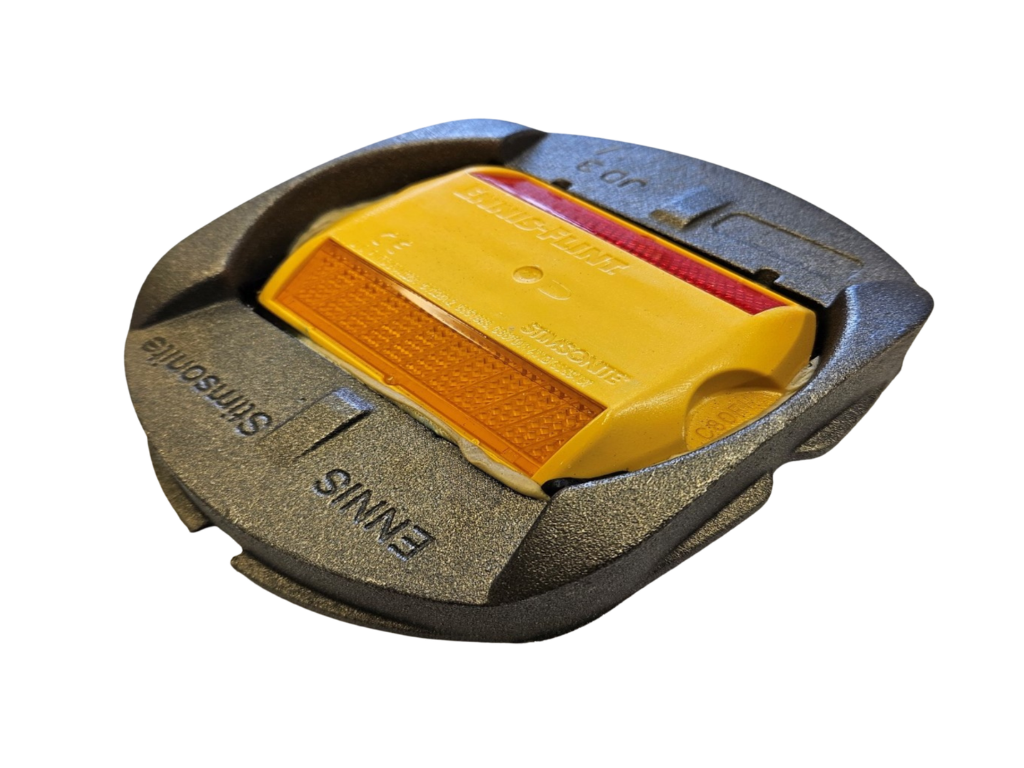

Duo Red/Yellow

Used in temporary traffic management zones to highlight the left-hand edge of the carriageway.
Uni White

Used for lane delineation in the direction of the driver on motorways, dual carriageways, and A-roads.

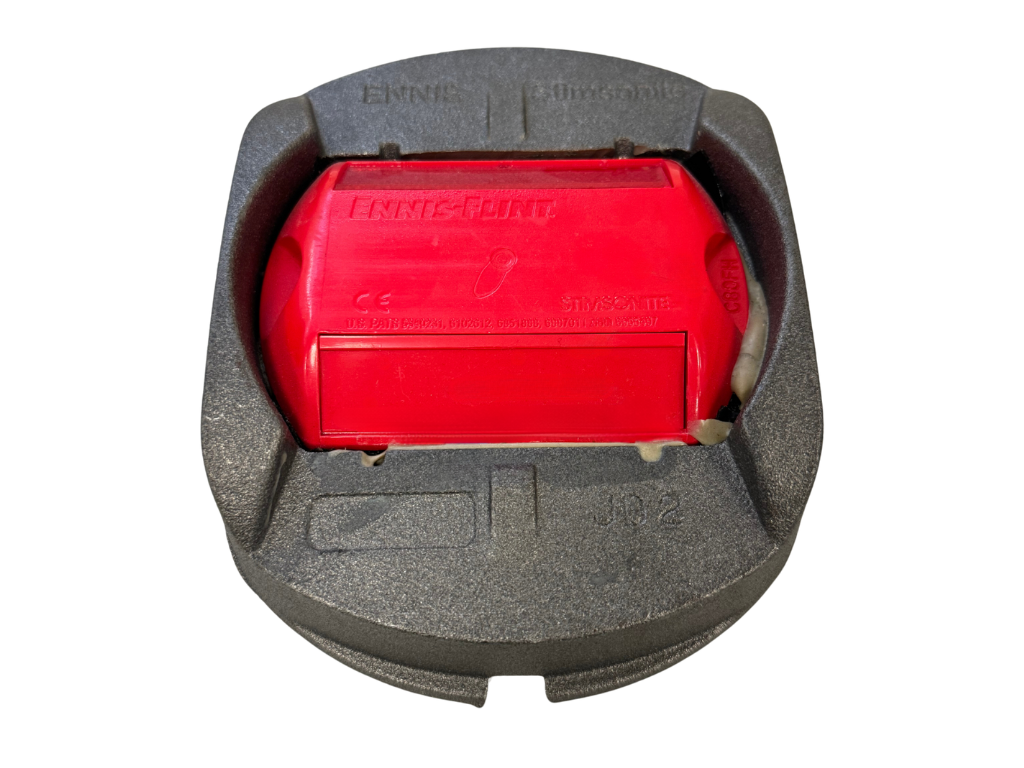

Uni Red

Used to warn drivers they are apporaching the edge of the carriagway unidirectionally.
Uni Yellow

Used on the right-hand edge of the road to indiciate proximity to a central reservation, obstruction, or hazard.
Uni Green

Used to inform drivers of entry and exit points on slip roads, lay-bys, and access points.

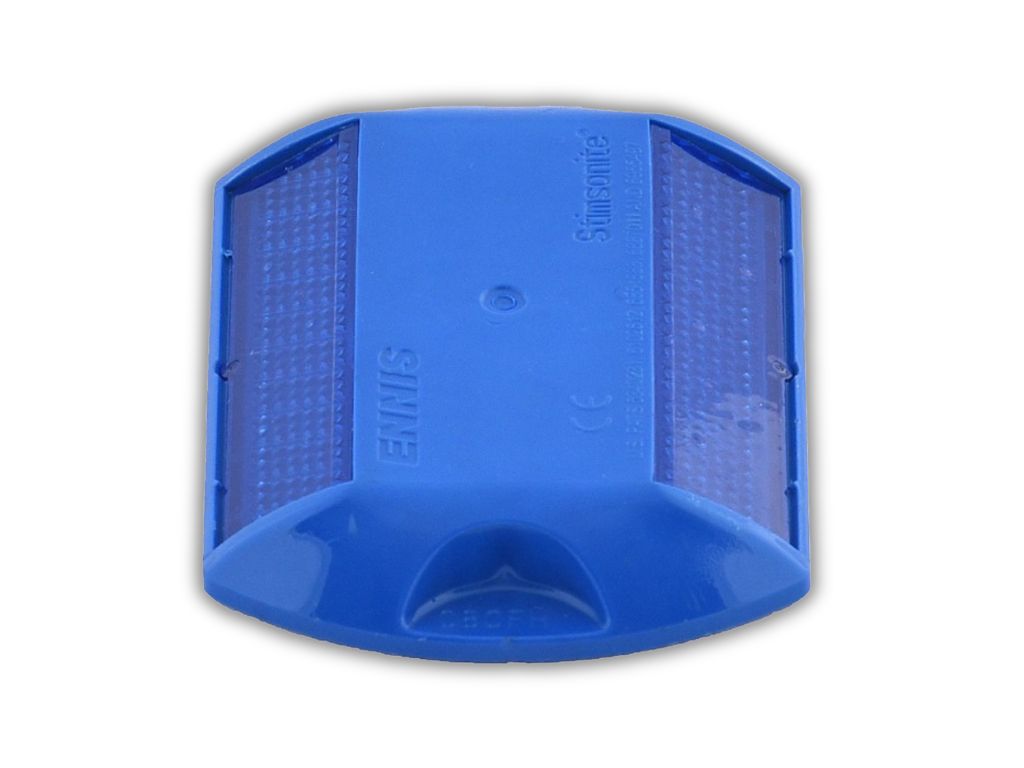

Duo Blue

Used for various applications around the world and for specific project requirements.

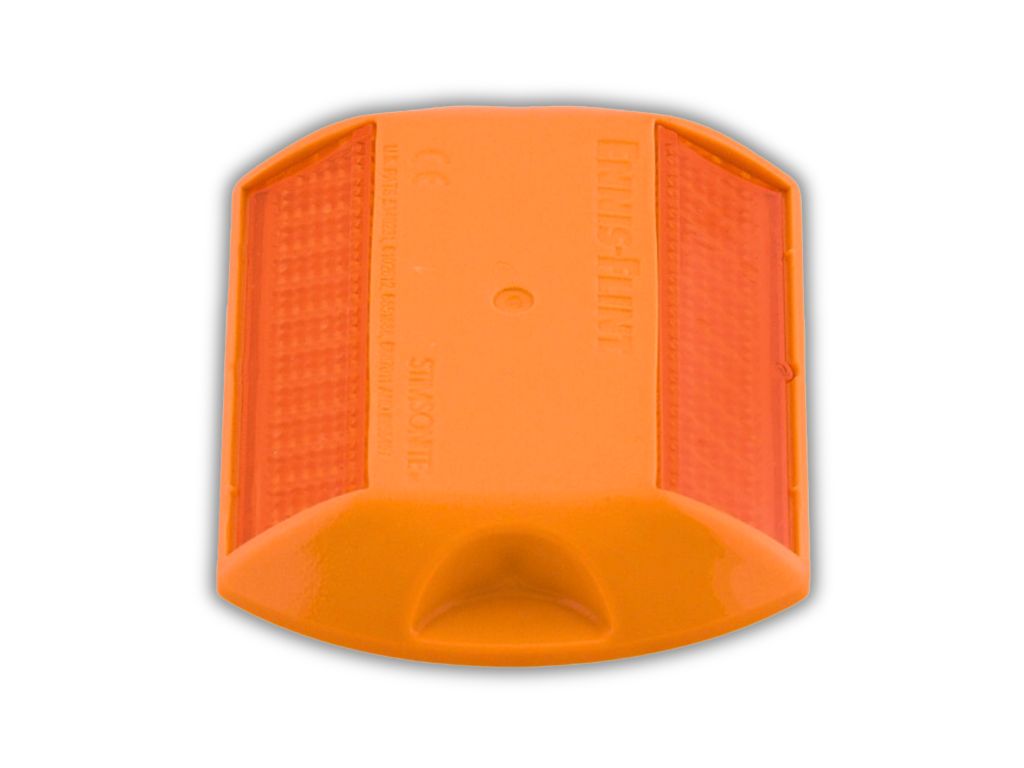

Duo Orange

Used for various applications around the world and for specific project requirements.

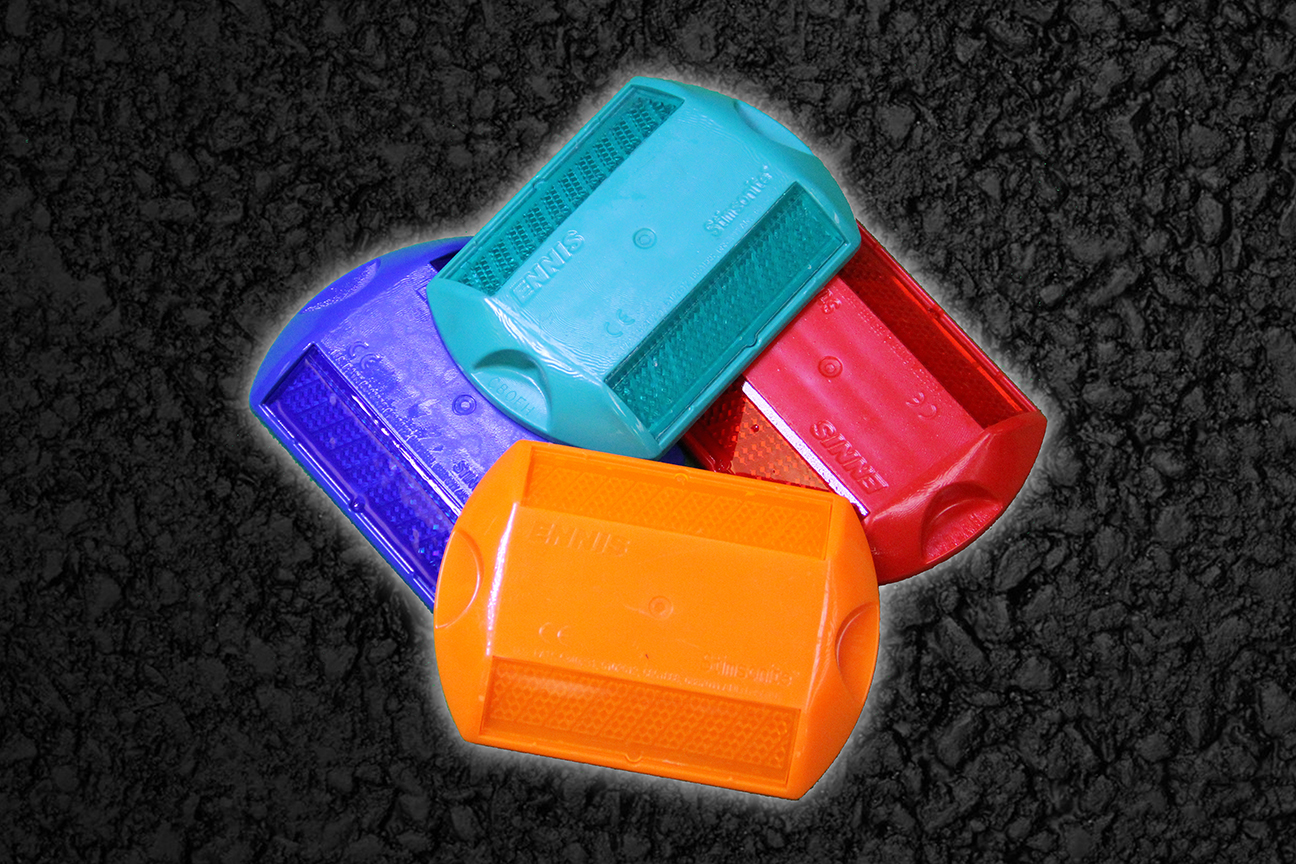

Can’t find your desired colour?

Our road stud range is available in a wide array of colourways, ensuring you can find the right solution for your specific project requirements. Enquire now to find out more about our full range.

Stimsonite® 980/C80 Surface Mounted Studs

Our Stimsonite® 980/C80 Surface Mounted Studs form part of our 381.C80 Inset Stud system and are glued into the metal housing to form the inset system.
